UPPER ARM REPAIR KIT



Lack of proper maintenance (grease) will make the pivot shaft and / or bearings wear that much faster.

In severe cases the shaft may rust to the bearings, so that the ends pivot in the sub-frame.

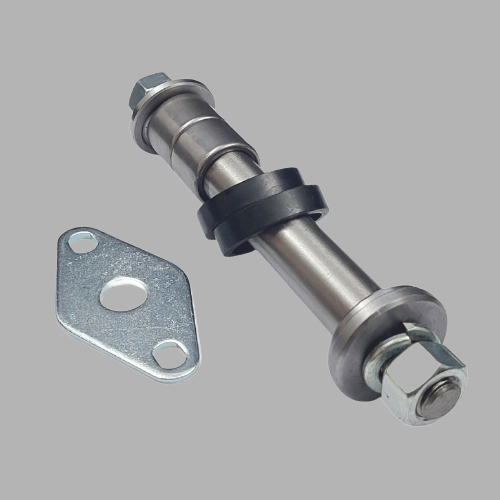

This rebuild kit includes all the parts, some you can’t even get separately. New shaft, shims, lock-plate, needle bearings and rubber seals for one side.

Require 2 kits per car.



For individual parts, see:

R/H arm – 21A2690.

L/H arm – 21A2691.

Shaft – 2A4325.

Needle roller bearing for upper arm (require 2 per arm) – 88G302.

Thrust collar – 2A4326.

Thrust washer – 2A7324.

Rubber sealing ring – 2A7327.

Retaining plate – 2A4327.

Spring washer 1/2″ UNF – GFK1128.

Plain nut, 1/2″ UNF – GFK3215​.
